YSI 5500D OPTICAL DO MONITOR, EXPANSION MODULES & ACCESSORIES

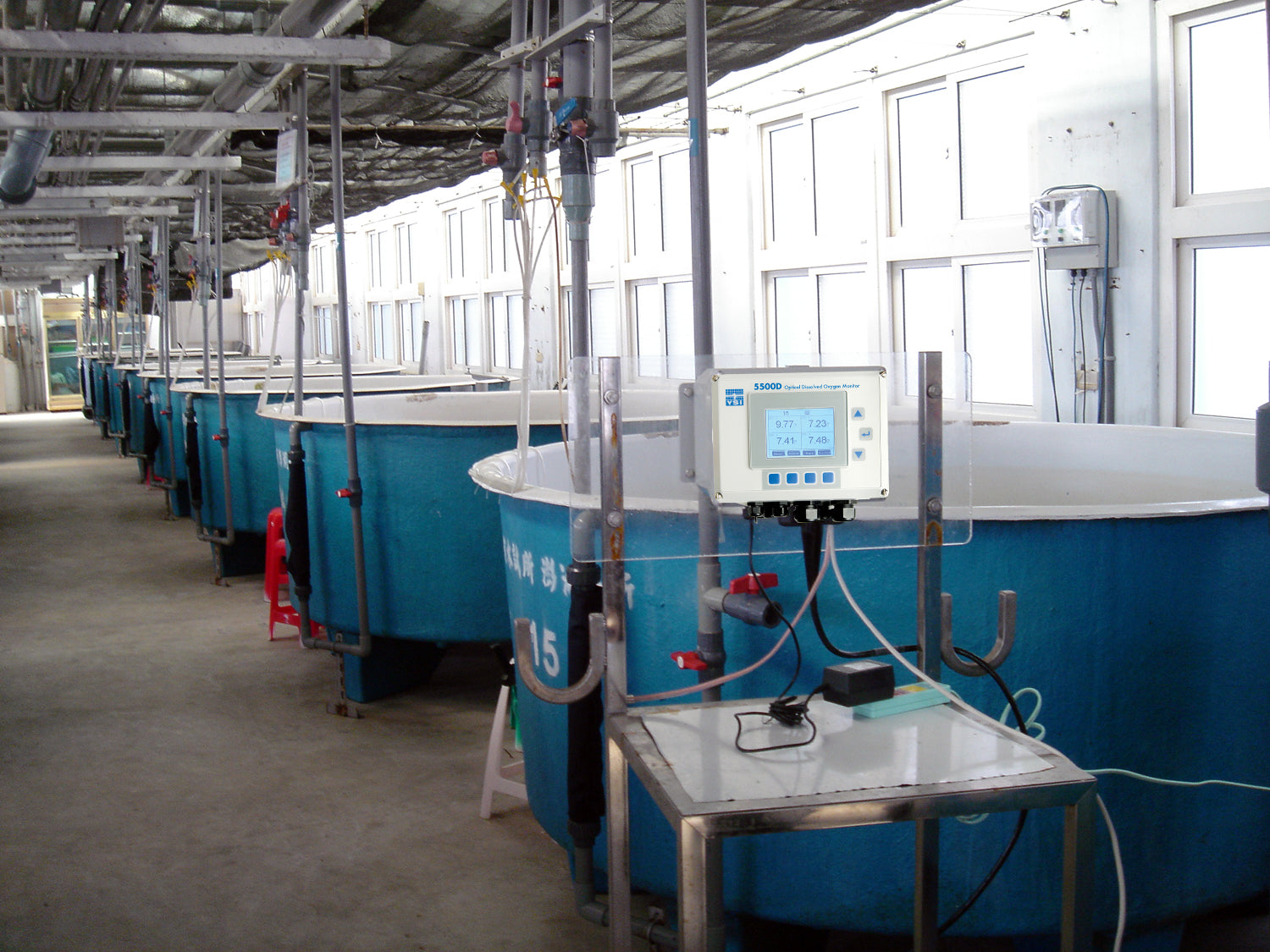

YSI 5500D Optical DO for Monitoring & Control Continuous Water Quality Monitoring for Dissolved Oxygen Designed specifically for aquaculture systems, the YSI 5500D continuous monitor for dissolved oxygen and AquaManager® Software can be used to integrate process control, feeding, alarming and data management into one product or can be used to simply monitor one tank. With YSI’s ODO® optical dissolved oxygen technology you’ll benefit from reduced costs, less maintenance and better data. The ODO sensors require no membrane changes, no electrode cleaning, no stirring requirement and less frequent calibrations.

Part Number

  • MultiDO monitor using optical DO technology
  • Ethernet TCP/IP or wireless communications - optional
  • Event logging records calibrations, high and low conditions, and more
  • Conditional feed timer with Feed SmartTM software included
  • Networking capability up to 32 instruments per communications port or integration with 5200As and 5400s
  • Graphic interface function for quick, reliable system status with the use of AquaManager software
  • Plug-and-play…easy to install, setup and maintain; no need to hire consultants • Flexible control software
  • Tank-side Calibration
  • E-mail and SMS alarming
  • AquaViewer app available for easy access to data at any time

The standard conditional feed timer, Feed SmartTM, manages food delivery based on user’s preset criteria. Manage feed delivery based on user-selectable inputs for the number of daily feedings, daily feed weights, total biomass and feed conversion ratios (FCRs), along with parameter control based on water quality values. Interfaces with most auto feeders. Optional AquaManager® desktop software allows you to view, configure, or setup instruments from the convenience of one central location. Instantly see an overview of your facility, manage parameter set points, and conveniently manage data to make informed operational decisions. The facility mapping feature provides an immediate overview of all ponds or tanks indicating their current state.

Parameters: Dissolved Oxygen (optical) Temperature

Applications: • Recirculating systems • Raceways • Ponds • Sea cages • Live haul • Aquariums • Research • Tanks

With optical DO, oxygen is constantly diffusing through the sensing cap affecting the luminescence of the sensing layer. The lifetime of the luminescence is measured by the sensor and compared against a reference.

Manufacturer Specifications

Aquaculture Monitor
Description Notes
YSI5500D-01-AC, Single channel optical DO Monitor, 110-230 VAC Order ODO probe/s separately
YSI5500D-01-Dc, Single channel optical DO Monitor, 12 VDC Order ODO probe/s separately
YSI5500D-02-AC, Two channel optical DO Monitor, 110-230 VAC Order ODO probe/s separately
YSI5500D-02-Dc, Two channel optical DO Monitor, 12 VDC Order ODO probe/s separately
YSI5500-04-Ac, Four channel optical DO Monitor, 110-230 VAC Order ODO probe/s separately
YSI5500-04-DC, Four channel optical DO Monitor, 12 VDC Order ODO probe/s separately
Expansion Modules and accessories
YSIIOEM-4, Four Channel Networkable module that has four (4) analog I/O channels
YSIIOEM-8, Eight Channel Networkable module that has four (8) analog I/O channels
YSIREM-4, Four Channel Networkable module that has four (4) relay outputs
YSI6513, Weather shield
YSI6514, Rail mount kit
Cable/Probe Assemblies
YSIm&C ODO-4, ODO Digital probe assy with 4 meter cable
YSIM&C ODO-10, ODO Digital probe assy with 10 meter cable
YSIM&C ODO-20, ODO Digital probe assy with 20 meter cable
YSIM&C ODO-30, ODO Digital probe assy with 30 meter cable
YSIM&C ODO-40, ODO Digital probe assy with 40 meter cable
YSIM&C ODO-50, ODO Digital probe assy with 50 meter cable
YSIM&C ODO-60, ODO Digital probe assy with 60 meter cable
YSIM&C ODO-70, ODO Digital probe assy with 60 meter cable
YSIM&C ODO-80, ODO Digital probe assy with 60 meter cable
YSIM&C ODO-90, ODO Digital probe assy with 60 meter cable
YSIM&C ODO-100, ODO Digital probe assy with 60 meter cable
Sensors and Accessories
YSIODO-CAP, Replacement ODO Sensor Cap Kit 5500 Optical Probe
YSI606941, Opto-Isolator
5200A, 5400 and 5500 - Needs 606942 or 606943 Power Supply
YSI606942, Power Supply,115VAC, Opto-Isolator 606941, 5200A, 5400 and 5500
YSI606943, Power Supply,230VAC, Opto-Isolator 606941, 5200A, 5400 and 5500
YSI5402, Internal Serial to Ethernet Device Kit 5200A, 5400, 5500
YSI6505, Weather Shield 5200, 5200A, 5400, 5500
YSI6506, Desiccant Kit 5200, 5200A, 5400, 5500
YSI6509, Panel Mount Kit 5200, 5200A, 5400, 5500
YSI6510, Panel Mount Kit 5200, 5200A, 5400, 5500
YSI065926UL, Conduit Fitting, Large 1" (for Optional Conduit Mount) 5200, 5200A, 5400, 5501
YSI5579, 12-Volt Power Supply, 115 VAC Input 5200, 5200A, 5400, 5502
YSI5578, 12-Volt Power Supply, 230 VAC Input 5200, 5200A, 5400, 5503
YSI606100, 230 VAC Cord, European 5200, 5200A, 5400, 5504
YIS606101, 230 VAC Cord, UK 5200, 5200A, 5400, 5505
YIS606102, 230 VAC Cord, Australia 5200, 5200A, 5400, 5506
Desktop Software
YSI5209A, Software, AquaManager, Single and Network Use 5200, 5200A, 5400, 5500
Calibrataor Solutions/Standards
YSI3161, Conductivity Calibrator, 1,000 umhos/cm (quart) Fresh Water
YSI3163, Conductivity Calibrator, 10,000 umhos/cm (quart) Brackish Water
YSI3165, Conductivity Calibrator, 100,000 umhos/cm (quart) Supersaturated Sea Water
YSI3167, Conductivity Calibrator, 1,000 umhos/cm (8 ea, pint) Fresh Water
YSI3160, Conductivity Calibrator Solution 1413 umhos/CM, +/- 1% (.01 MOLAR KCL)
(8 ea, pint)
YSI3169, Conductivity Calibrator, 50,000 umhos/cm (8 ea, pint) Sea Water
YSI3682, Zobell Solution, ORP Calibrator 125 mL
YSI061321, Zobell Solution, ORP Calibrator 250 mL
YSI061322, Zobell Solution, ORP Calibrator 500 mL
YSI3821, pH 4 Buffer (box of 6 pints)
YSI3822, pH 7 Buffer (box of 6 pints)
YSI3823, pH 10 Buffer (box of 6 pints)
YSI3824, pH Buffer, Assorted Case 2 ea pints of 4, 7, 10
