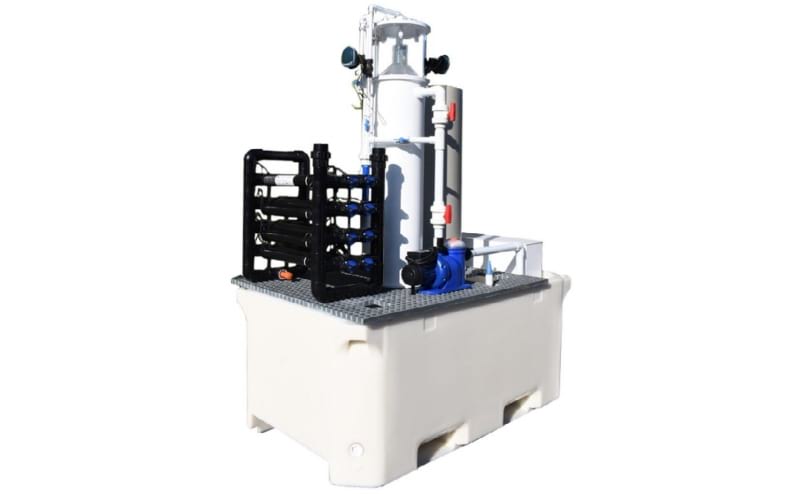

TMC Titan System 5000 MBBR

Call 1-407-995-6490 for a Custom Quote

A complete, compact, plug and play recirculation filtration system
(RAS) for use in saltwater and freshwater applications.
Ideally suited for hatcheries, research facilities, retail shops, shellfish
holding systems, as well as public aquaria displays and quarantine
• Small space saving design incorporating mechanical, moving bed bioreactor (MBBR) biological and UV filtration, as well as a high-performance
venturi driven protein skimmer
• New energy saving design, with the entire filtration system being run off
a single pump
• Water flow to the livestock tanks supplied via a double pass UV for
effective sterilisation
• Manufactured from high quality polypropylene, PVC and acrylic
components, suitable for marine environments
• Robust, double walled and fully insulated reservoir
• Can be re-assembled in a matter of hours without any specialist tools.
• Manufactured in the UK Included:
1400L Pallet reservoir
(Alternative 1000L reservoir)
Mechanical bag filter unit
supplied with 4 x 100 micron
filter bags
MBBR built into the reservoir
with 300L of media
LA120 Air Pump
PSW5300P Protein Skimmer
Titan P8 UV Steriliser 440w
AG8 Pump
Available separately:
Livestock supply pump
Automatic wash down kits
for the Protein Skimmer
Ozone Generator
with Redox Controller
Ozone Monitor
Heater with
digital thermostat
UV Bypass
Additional pressurised
mechanical filtration
Additional reservoir
Pipe and fittings
