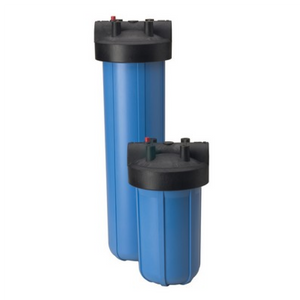

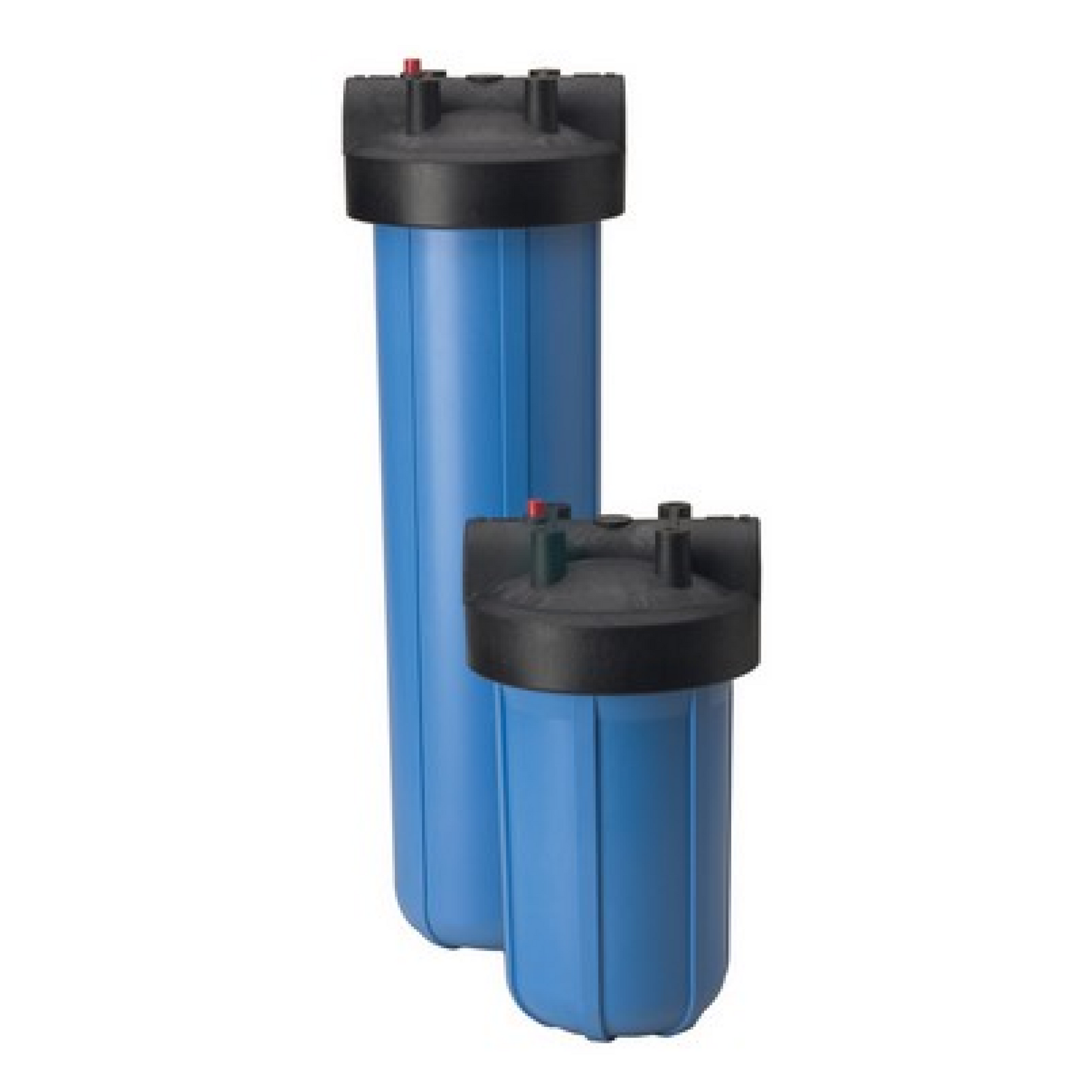

These Big Blue Filter housings offer the versatility to meet all large capacity filtration needs, including high-flow and heavy-sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.
The blue filter body is constructed of durable reinforced polypropylene. The black cap is high-flow polypropylene (HFPP). Big Blue housings are compatible with a broad range of chemicals and accept a wide variety of 4-1/2" diameter cartridge in either 10" or 20" lengths.
Available in either 10" or 20" filter lengths with pressure relief. See Specifications.
Features:
- Housing: Polypropylene
- Cap: Polypropylene (HFPP)
- Button Assembly: 300-Series stainless steel, EPDM, and polypropylene
- O-Ring: Buna - N
- Temperature Rating: 40-100F
- Maximum Pressure:
- 10": 100 psi (6.9 bar)
- 20": 90 psi (6.2 bar)
Liquid Filled Pressure Gauges:
- For pressure measuring of liquid or gas; also where vibration is a concern.
- 2-1/2" dial size, 1/4"NPT lower mount
- Stainless steel case, glycerin filled
- Pressure range: 0-30 psi or 0-60psi
