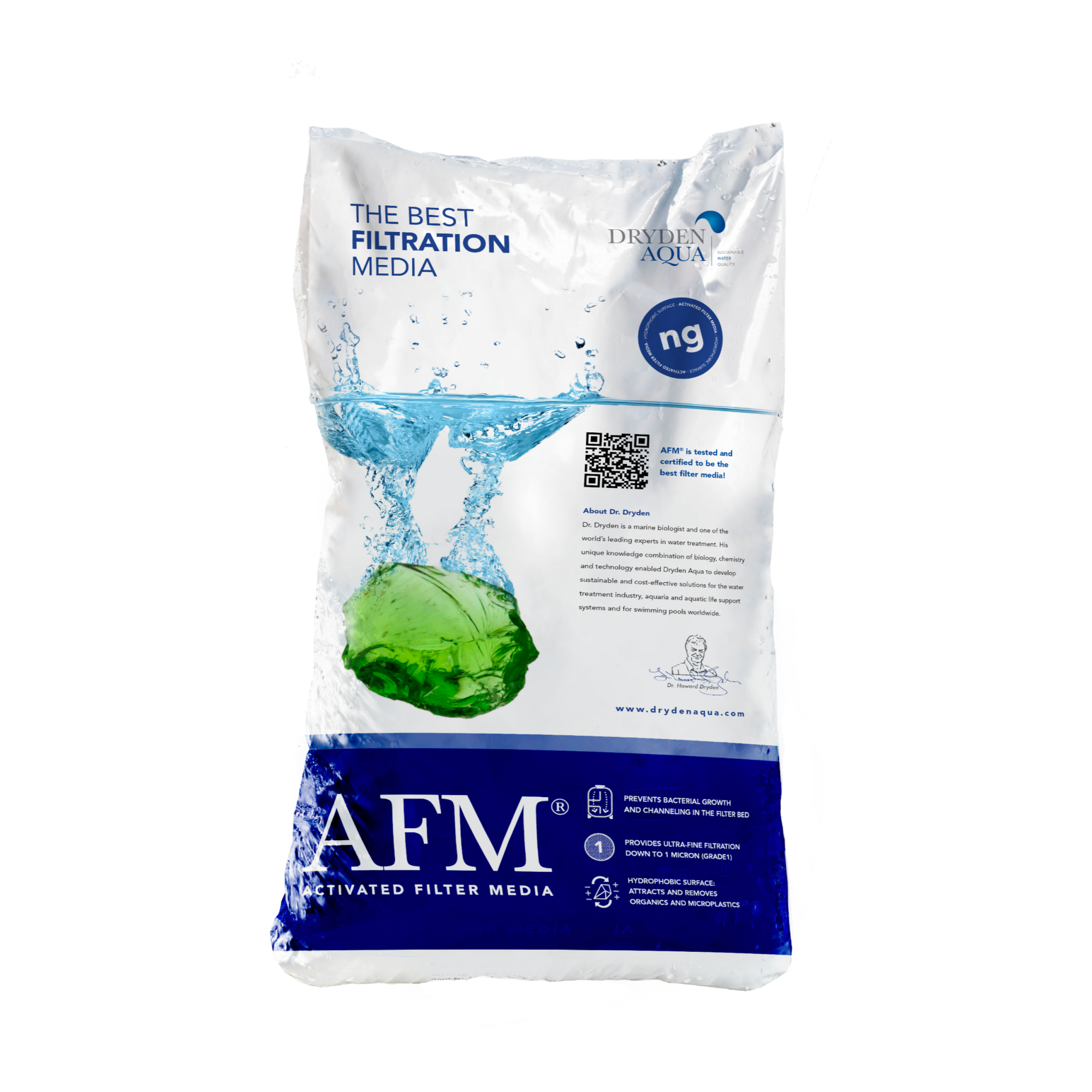

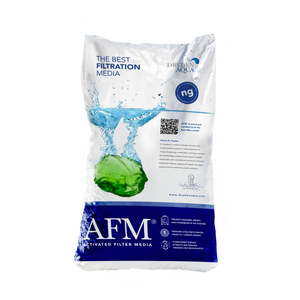

AFM® Activated Filter Material
What is AFM®?
AFM®Activated Filter Media is a direct replacement for sand, doubling the performance of sand filters without the need of additional investments in infrastructure. AFM®resists biofouling, bio-coagulation and transient wormhole channeling of unfiltered water and never needs to be recharged or replaced.
AFM®is a highly engineered product manufactured from a specific glass type, processed to obtain the optimum particle size and shape. It is then exposed to a 3-step activation process to increase its surface area by up to 300 times for superior mechanical and electro-static filtration performance.
AFM®benefits at a glance
• More than doubles the performance of an existing filtration system
• Is not subject to biodynamic instability and will never allow untreated water to pass
• Substantially lowers chlorine oxidation demand
• Lowers backwash water demand by an average of 50%
• Is expected to last for the life of the filtration system
• Provides a quick return on investment
AFM® has certification such as NSF 50 (swimming pools) and 61 (drinking water), HACCP, UK DWI, and others. AFM® has been independently tested, and its superior performance over quartz sand and other glass filter media was documented in the 2014 IFTS Report (Institute de la Filtration et des Techniques Separative in France).
WHAT MAKES AFM®SO EFFECTIVE?
1. Clean, carefully selected glass
AFM®is only made from pure green and brown glass which have the necessary metal oxides to help make AFM®self-sterilizing.
2. Ideal hydraulic properties

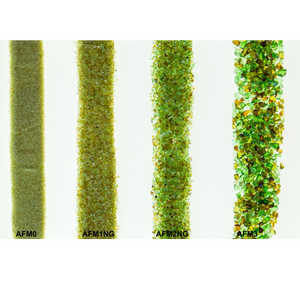

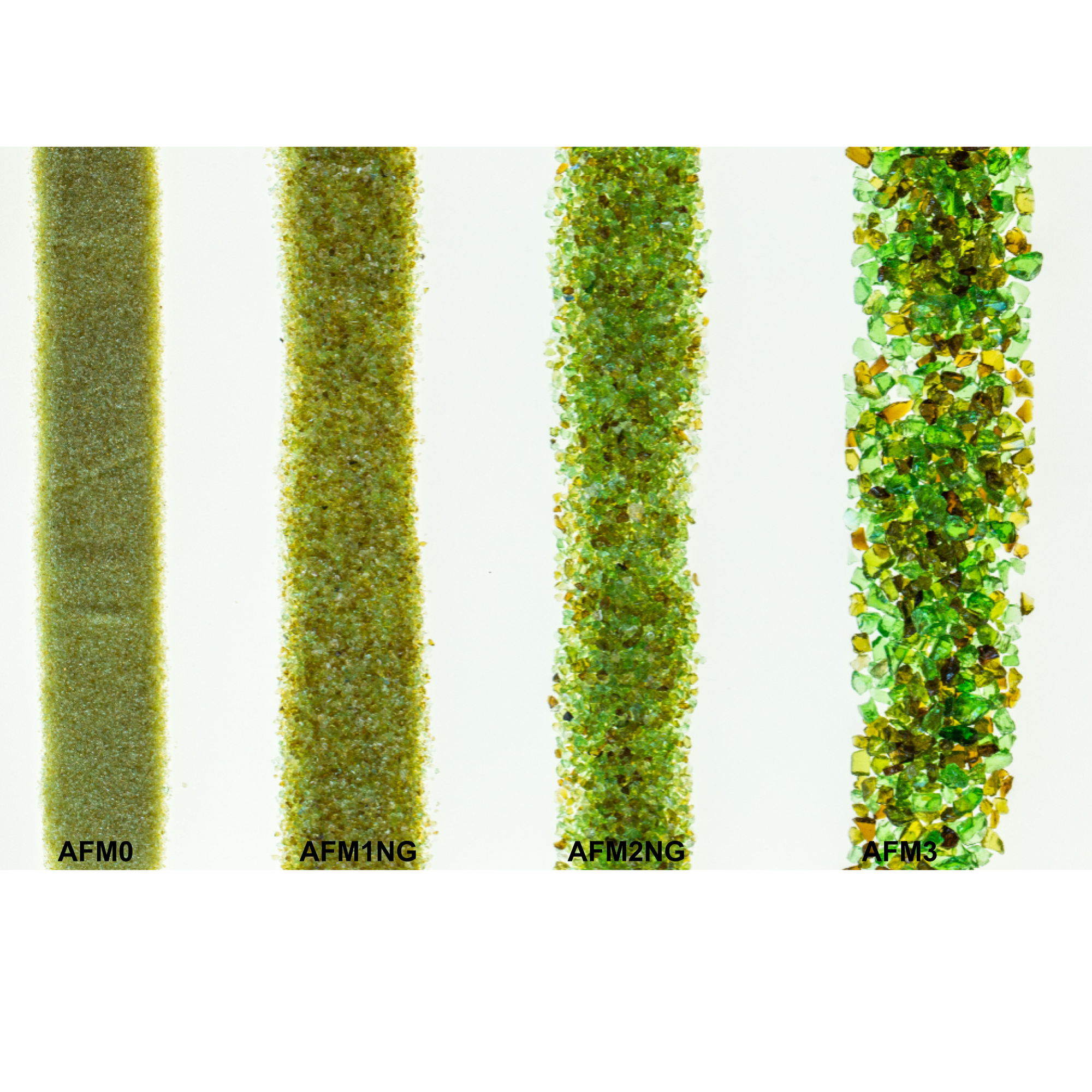

The raw material is ground into the optimal grain size and shape that is crucial for the outstanding hydraulic characteristics of AFM®. No dangerous glass splinters are allowed to be present in the filter material. Our manufacturing process is ISO certified.
3. Activation process
The AFM®activation process creates a mesoporous structure with a huge catalytic surface area. Sand has a surface area of 3,000 m² per m3 but AFM®has a surface area up to 300 times greater for absorption and catalytic reactions. Hydroxyl groups on the surface give AFM®a strong negative charge, known as the zeta potential that attracts heavy metals and organic molecules. In the presence of small amounts of oxygen or oxidizing agents, the catalytic surface generates free radicals that make AFM®self-sterilizing.
