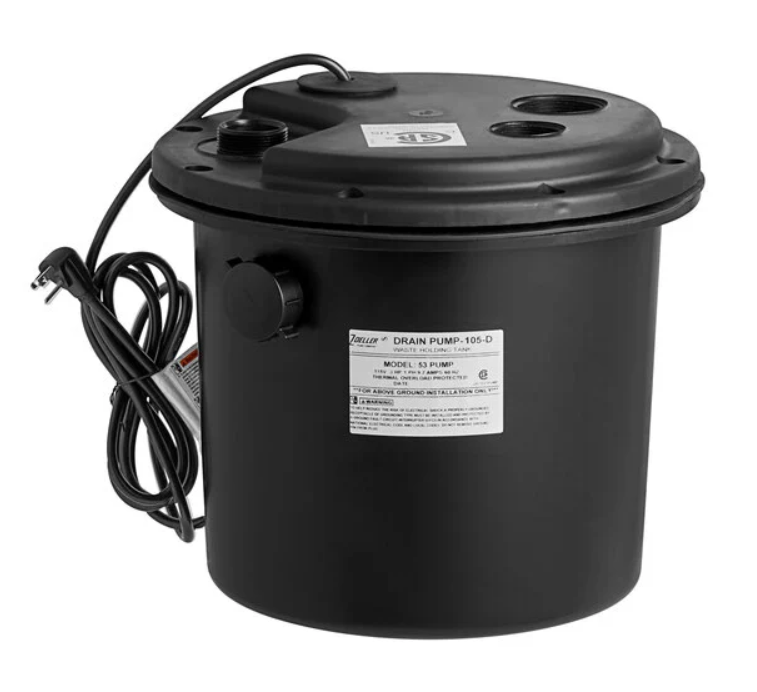

Easily transfer discharged effluent for small aquatic systems where gravity flow is not available with this drain pump system with vertical float switch. This drain system includes all the hardware needed for easy assembly. No need to dig a sump, this system offers easy installation.
This drain pump system features a polypropylene basin, an automatic float operated mechanical switch as well as a non-clogging vortex impeller. Powered by a 1/3 hp motor, capable of passing 1/2" solids with a maximum flow rate of 43 gpm. This system has a 1 1/2" NPT discharge, a 2" NPT vent, threaded connections, and a 1 1/2" compression slip fit for top and side intake. The screws, guard, handle, and switch arm are all constructed of durable stainless steel. It requires a 115V electrical connection for operation.
Overall Dimensions:
Maximum Diameter: 14 1/2"
Bottom Diameter: 11 3/4"
Height: 12 1/2"
