Drain Pump System

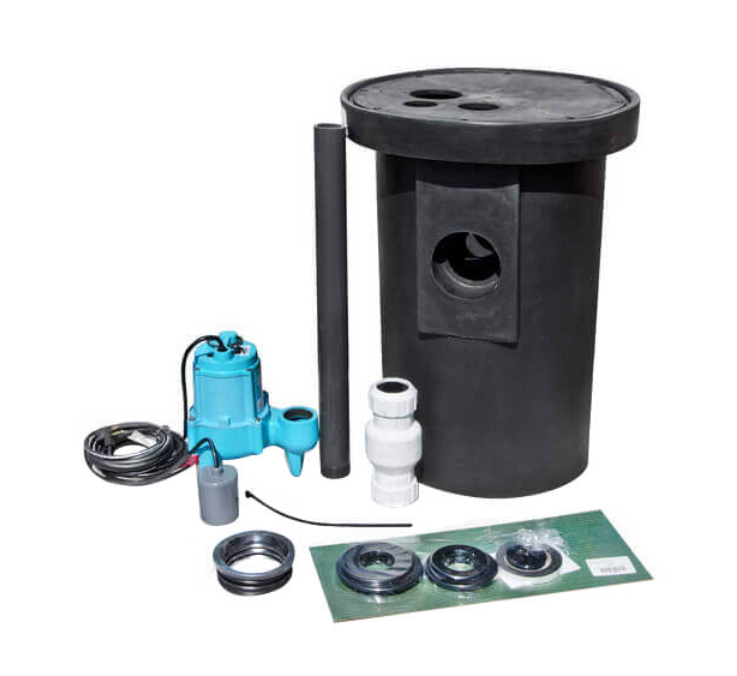

Easily transfer discharged effluent for small aquatic systems where gravity flow is not available with this drain pump system with vertical float switch. This drain system includes 4/10 HP Little Giant Pump and all the hardware needed for easy assembly. No need to dig a sump, this system offers easy installation. Pass solids up to 2" in size. Sump volume is approximately 30 gallons.

Series Features:

• Handles liquids and solid waste materials

• Cast iron pump housings with protective epoxy coating for corrosion and rust resistance

• Oil-filled motor housings for lifetime lubrication and rapid heat dissipation

• Stainless steel screws, bolts, handle and seal assembly

• Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)

• Thermal overload protection

• 18" x 30" Polyethylene basin with structural foam one-piece cover

• Sturdy roll-top design

• Full flow check valve (except on noted models)

• 28" schedule 80 PVC discharge nipple with predrilled air-bleed hole

• 4" molded inlet hub

• Multi-Tite insert for PVC or cast iron
  inlet pipe

• Molded inserts on bottom of basin to locate and secure pump

Product Specifications:

• • Horsepower: 4/10 (Handles 2" Solids)

  • Flow: 80 GPM @ 5'

  • Cord Length: 15'

  • Shut Off: 18'

  • Voltage: 115 V

  • Hertz: 60

  • Amps: 13

  • Watts: 1020

  • Weight: 63 lbs
